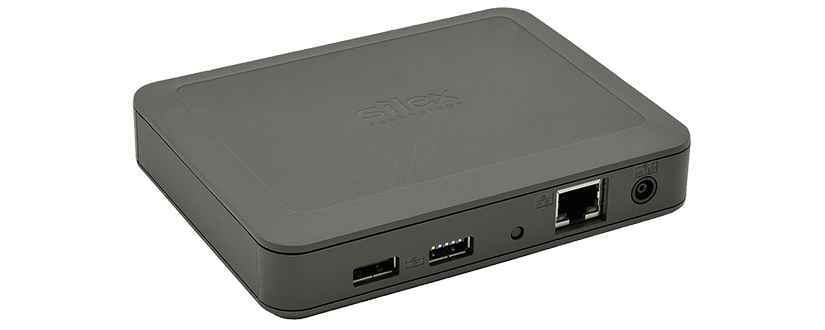

Silex DS600

Video   PDF


More and more USB devices, such as scanners, MFPs, hard disks or RDX-systems and cameras, have been used in offices. The USB Device Server allows you to use devices on a network, improving installation flexibility without troublesome USB cables. As this enables USB devices to be easily shared, you can optimize use of USB devices in the office, reducing installation costs.


  • Wired LAN: 10BASE-T, 100BASE-TX, 1000BASE-T (Auto Recognition)
  • Device interface: 1 x USB 3.0 SUPERSPEED (Type A) and 1 x USB 2.0 Hi-Speed (type A)
  • Operating system supported:
  • Windows 10 (32/64bit), Windows 8/8.1 (32/64bit), Windows 7 (32/64bit), Windows Server 2012R2, Windows Server 2012, Windows Server 2008R2, Windows Server 2008 (32/64bit)
  • Protocol supported: TCP/IP
  • Configuration:  Setup utility (Device Server Setup), Web browser
  • Dimensions: W: 130mm x D: 100mm x H: 26.2mm (body only)
  • Weight: 145g (Without Accessories)
  • Power supply:  AC adapter AC100V 50/60Hz
  • Maximum power consumption: 4.8W (DC12V 0.4A) not including USB bus power
  • Regulatory compliance: VCCI Class B / FCC Class B / CE Class B
  • Maximum number of connections: 15
