Description

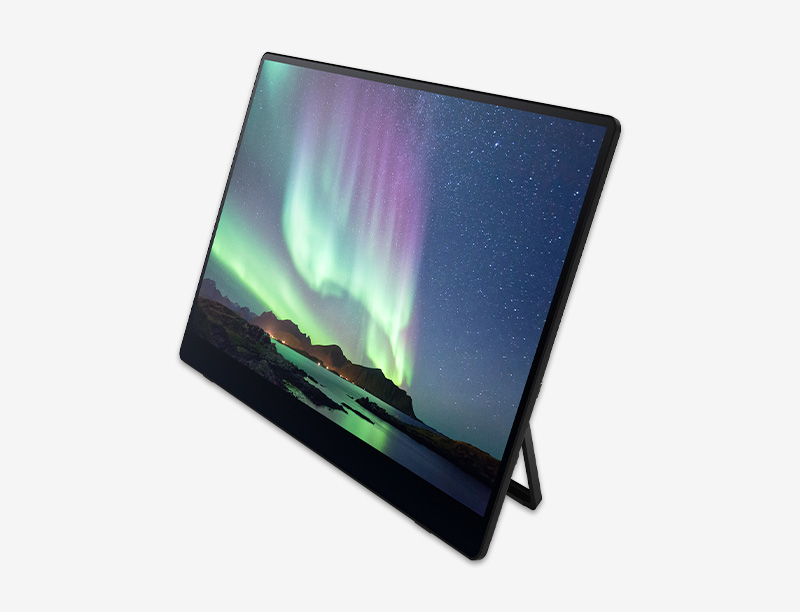

Model 150 is the world's lightest* portable touchscreen monitor of 15.6 inches, weighing only 560 grams.
OLED display with excellent contrast, brightness, and with a rapid response time - as low as 1ms.
Scratch and shatterproof tempered glass display.
High-performance touch sensor capable of multi-touch.
Display 15.6” OLED / Resolution 1920x1080 / Response time 1ms Ports USB Type-C x2 Audio 2 integrated 1.5W speakers - rear
Specification
|
Ricoh Portable Monitor 150
|
| Display panel |
Display method |
OLED (Organic Light Emitting Diode) |
| Maximum resolution |
1920 x 1080 |
| Brightness (max)*1 |
300 nit (=cd/m2) |
| Contrast |
1:100,000 |
| Display colours |
8bit+2bit FRC (maximum number of colours: Approx. 1.07 billion colours) |
| Panel size |
15.6 inches |
| Refresh rate |
60Hz |
| Colour gamut |
DCI P3 100% |
| Viewing angle |
85° or higher |
| Response time |
1ms |
| Blue light cut |
Eye Care Display certified |
| Number of simultaneous display units |
1 unit |
| Touch panel |
Protective glass |
Toughened glass, AF (anti-fingerprint) coating |
| Detection method |
Active electrostatic coupling method (AES2.0) |
| 10-point multi-touch*2 |
Supported (Windows®/ Android™) |
| Interfaces |
Back side |
USB Type-C® 2 (External power supply/ DisplayPort™ signal input function supported) |
| Screen wireless communication method, Encryption |
N/A |
| Supported wireless LAN standard |
N/A |
| Audio |
Built-in speaker |
1.5W x 2 |
| Power supply (external) |
Input method |
USB Power Delivery (USB Type-C® powered) |
| Input*3 |
Max. 45W (5V/3A, 9V/3A, 15V/3A, 20V/2.25A) |
| Output (power pass through)*4 |
Max. 25W (5V/0.9A, 9V/0.77A, 15V/1.66A, 20V/1.25A) |
| ON mode power consumption |
13 W or less |
| Standby mode power consumption |
0.2 W or less |
| Internal battery |
Type |
N/A |
| Capacity |
N/A |
| Charging time |
N/A |
| Operating time (when fully charged) |
N/A |
| Environment |
Operating temperature |
0~35°C |
| Operating humidity |
10-80% (without condensation) |
| Continuous operating time |
20 hours*5
|
| Weight (main unit only) |
1.23lb (560g)
|
|
Dimensions (main unit only)
W x D x H
|
356.0 x 10.8 x 221.7mm (thinnest part: 4.8mm) |
|
